4-5/8" Rediframe Fixed Non-Kerfed Door Frame
In-Stock: SoCal
Product #458FN345H
Categories: Commercial | Frame | Rediframe Fixed Non-Kerfed Frame | Rediframe
Description:

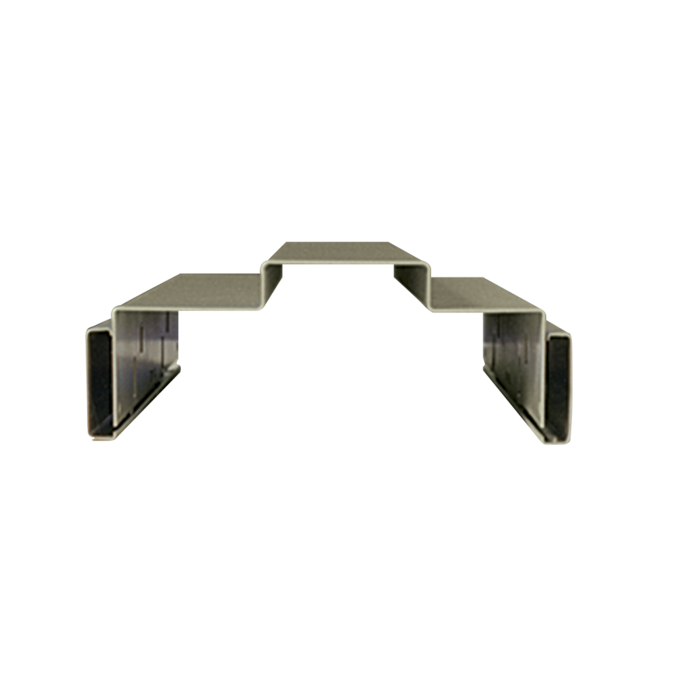

Rediframe Fixed Non-Kerfed Frame 18 or 20-Gauge Steel

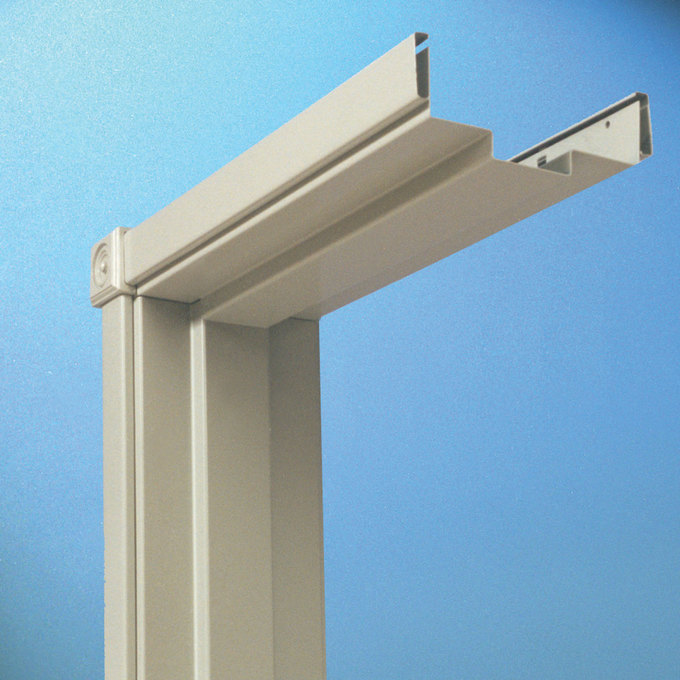

Rediframe is a prefinished fixed throat steel door frame designed for interior and exterior applications where the strength of a steel door frame is desired. Especially suited for new construction and light commercial applications: hotel/motel, assisted living, or residential.
- 1⅜" and 1¾" doors
- 17 Standard wall sizes
- Over 70 custom profiles available, from 2⅝" to 13"
- ⅝" stop height
- Demountable without damage to the finished wall, door or frame
- Standard frame is cold-rolled steel per ASTM A366
- Standard casing is 22-gauge cold-rolled steel per ASTM A366 (included).
- 4" and 4½" hinge preps
- 2¾" T-strike prep
- Embossed 90 minute neutral and positive pressure fire label; wood or steel stud. Options
- S56 Steel Colonial casing, aluminum casing, or wood casing prep.
- Galvanized Standard Casing (A-40)
- Galvanized Frame (A-40)
- Cased opening, Dutch, single swing, communicating and pair doors, pocket, borrowed lites, transom and sidelites.
- Special hinge or strike location
- Non-standard wall size
- Universal Hinge Prep
- 4⅞" Adjustable ASA strike prep
- 2¾" Deadbolt strike (1¾" doors)
- 2¼" Full lip strike (1¾" doors)
| -Door | Prep# | R.F# | Hinge Dim | Qty. | Radius | Depth |
|---|---|---|---|---|---|---|
| Single | *340 |
5 | 4" | 3 | ¼" | .125" |
| Single | *345 |
31 | 4-½" | 3 | Square | .134" |
| Single | **445 |
35 | 4-½" | 4 | Square | .134" |
| Double | *640 |
9 | 4" | 6 | ¼" | .125" |
| Double | *645 |
33 | 4-½" | 6 | Square | .134" |
| Double | **845 |
37 | 4-½" | 8 | Square | .134" |
* Available on 6/8 & 7/0 Doors Only.
** Available on 8/0 Doors Only.
| Item | (W) | (H) | (T) |
|---|---|---|---|
| 45820FN345ALHL6 | 4-5⁄8" | 6' 8" | 1-3⁄4" |
| 45820FN345ALHL7 | 4-5⁄8" | 7' | 1-3⁄4" |
| 45820FN345BLHL6 | 4-5⁄8" | 6' 8" | 1-3⁄4" |
| 45820FN345BLHL7 | 4-5⁄8" | 7' | 1-3⁄4" |
| 45820FN345BRHL6 | 4-5⁄8" | 6' 8" | 1-3⁄4" |
| 45820FN345BRHL7 | 4-5⁄8" | 7' | 1-3⁄4" |
| 45820FN345BWHL6 | 4-5⁄8" | 6' 8" | 1-3⁄4" |
| 45820FN345BWHL7 | 4-5⁄8" | 7' | 1-3⁄4" |
| 45820FN345PRHL6 | 4-5⁄8" | 6' 8" | 1-3⁄4" |
| 45820FN345PRHL7 | 4-5⁄8" | 7' | 1-3⁄4" |
Pre-Finishes:
-
Rediframe Black
-
Rediframe Brown
-
Rediframe Bright White
-
Rediframe Alusteel
-
Rediframe Primed
Similar Products:
Manufacturer:
Literature:
-
Rediframe Brochure
