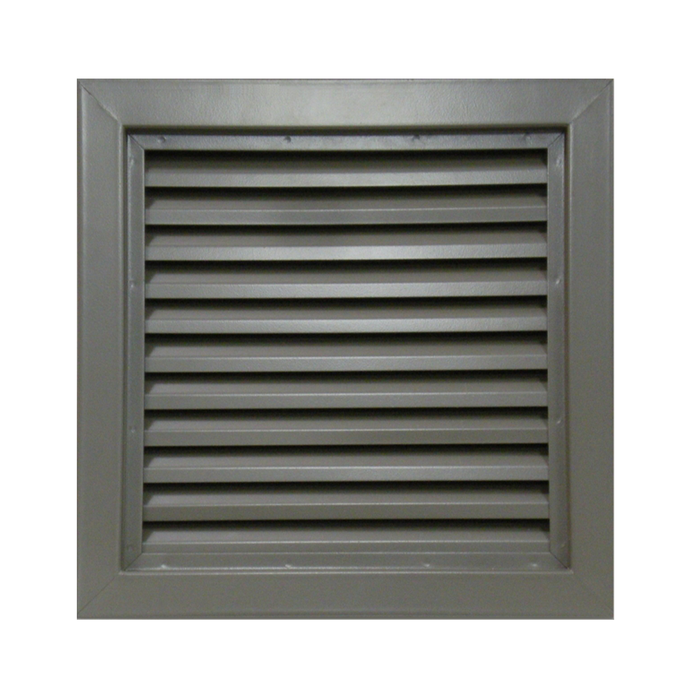

Inverted Y-Blade Louver
Description:
** Inverted “Y” blades recommended for schools, class “A” and institutional buildings **
- 18 Gauge CRS frame and 20 gauge blades. Min size 6"x4", Max 48x80". Multiple sections be combined for larges sizes
- Inverted “Y” blades with 1" blade spacing are attached by interlocking construction to the 1" deep, welded frame. Non-vision. 800A1 frame is 1 ¼ trim, mitered and welded corners. Screws fasten through frame into louver core, leaving corridor side of frame free of fasteners
- Door cutout size 1 ¾
- Available powder coat finishes - Bronze and Gray
- Phillips head screws #8 x ¾" to match finish
| Item | (W) | (H) | (T) |
|---|---|---|---|
| 800A11212B | 1' | 1' | |
| 800A11212G | 1' | 1' | |
| 800A11812B | 1' 6" | 1' | |
| 800A11812G | 1' 6" | 1' | |
| 800A12412B | 2' | 1' | |
| 800A12412G | 2' | 1' | |
| 800A12418B | 2' | 1' 6" | |
| 800A12418G | 2' | 1' 6" | |
| 800A12424B | 2' | 2' | |
| 800A12424G | 2' | 2' | |
| 800A12466B | 2' | 5' 6" | |
| 800A12466G | 2' | 5' 6" | |
| 800A13024B | 2' 6" | 2' | |
| 800A13024G | 2' 6" | 2' |
