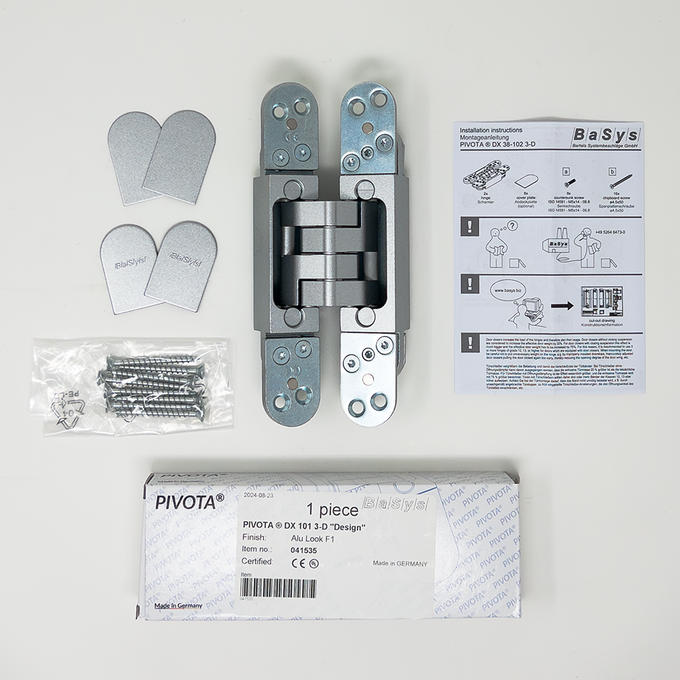

Pivota DX101 Medium Duty Adjustable Concealed Hinge for Flush Door
Description:
- 3-D adjustable concealed hinge for flush doors
- Identical hinge mortises for doors weighing up to 264 lbs./pair
- Single prep for DX61 and DX101 hinge types
- Strong Aluminum & Steel Metals (no zinc alloys)
- DX101 has steel armature & aluminum body
- Minimum Door Thickness: 1-½"
- UL Listed: 30 min.
- Magnetically fixed coverplates provide installation without visible screws
- Available Colors: PIV-DX101-AL-PC (Aluminum-Look), PIV-DX101-BL-PC (Black RAL 9005), PIV-DX101-DB-PC (Dark Bronze), PIV-DX101-LB-PC (Medium Bronze RAL 1035), PIV-DX101-PN-PLT (Polished Nickel), PIV-DX101-SN-PC (Satin Nickel)
| Item | (W) | (H) | (T) |
|---|---|---|---|
| PIV-DX101-AL-PC | 1-3⁄16" | 7-1⁄16" | |
| PIV-DX101-BL-PC | 1-3⁄16" | 7-1⁄16" | |
| PIV-DX101-DB-PC | 1-3⁄16" | 7-1⁄16" | |
| PIV-DX101-LB-PC | 1-3⁄16" | 7-1⁄16" | |
| PIV-DX101-PN-PLT | 1-3⁄16" | 7-1⁄16" | |
| PIV-DX101-SN-PC | 1-3⁄16" | 7-1⁄16" |
Manufacturer:
